Well respected brand of pond equipment from China
Authorised Australian dealer - Trading 35 years
Electrical Safety Warning: Beware of other sellers that import & sell non-compliant product. This is illegal and dangerous. It would void any household or commercial insurance claim. Non-compliant pumps will fail an Electrical Test & Tag requirement in accordance with AS/NZS 3760:2010.
Prior to selling in Australia the electrical item must have:
- Compliant insulated plug with current ERAC National Certification
- Compliant cable with current ERAC National Certification
- C-tick of approval on the label
- No included plug conversion adaptor, in the belief that this makes it compliant
Full warranty support
We hold large stocks for instant shipping
Ideal for adding oxygen into aerobic wastewater systems in non-sewered areas. Also used for pond aeration into a fish pond which is very important for fish health, particularly in densely stocked koi fish ponds and in the summer months when oxygen levels decline. Fish will become visibly more active in an oxygen-rich pond.
The perfect choice for natural swimming pond wetland aeration and for airlift pumping of the water
SPARE PARTS (see our website) - We warehouse replaceable diaphragms, valves, board washers & linear magnet frames to ensure long term reliability.

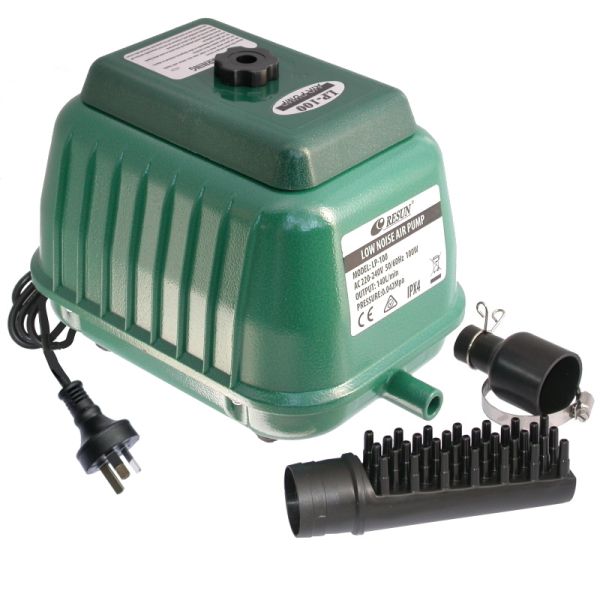

The Resun Air Pump LP100 delivers with low noise a maximum high volume air output of 8400L/hr (140 litres per minute), which is suitable for larger aerobic biocycle sewage systems & fish and koi ponds. It must be housed to be protected from dust ingestion. Dust will prematurely wear the rubber valves & diaphragms.
Installation hints:
- Do not install any brand of air pump of this size in the lounge room unless you like a continuous low noise hum whilst watching TV. Place the pump in a non-habitable room, or outside, and then plumb air line tubing to the tank diffusers.
- To increase the life of the rubber diaphragms, the unit must have back pressure. See details below.
Also used for: Air lift water pumping & aeration, Waste water treatment aeration, biocycle, envirocycle & ecocycle deep water septic tank aeration, Natural swimming pond aeration, Aquaculture pond aeration, Commercial and industrial water aeration, Bubble baths
FEATURES
- Electromagmetic linear diaphragm technology
- Low noise. Decibel levels measured in a quiet room using A-frequency weighting with medium back pressure loading on the pump:
44dB(A)+/- at 3m from air pump, 55dB(A)+/- at 500mm from air pump. A quite room ambient noise level is 30dB(A)+/-
- Cast aluminium body
- Voltage/Wattage: 240V / 100W
- Automatic thermal cut-out overload protection
- Cable length: 1.5m
- Max pressure: 42kPa / 0.42 bar / 420 mbar / 6.1 psi
- Max air output: 8400L/hr (140 Litres/minute)
- Air pump outlet diameter: 20mm
- Must be set-up above the water level
- Important: Rated IPX4 (meaning - Should be placed in a low dust environment but will tolerate rain and light sprinkling)
- Maximum water depth for placed airstones or air diffuser: 4.0m
- Supplied with a plastic 33 outlet x 46mm barbed manifold to suit 4mm - 8mm silicon air line. Block off outlets not used with a squirt of silicon sealer into the outlet
- Air Pump dimensions: 270mm(L)x200mm(W)x230mm(H)
- Weight: Air Pump, 6.6kg. Cartoned pump: 7.31kg
SPARE PARTS (see our website)
WARRANTY: 2 year warranty (Motor only) - excludes rubber diaphragms & valves
PLEASE NOTE:
To avoid premature or unexpected failure of the rubber diaphragms and valves:
- As preventive maintenance, the industry standard would require that all linear electromagnetic air pumps running 24/7 should be dismantled, air jet cleaned & have the diaphragms & valves replaced every 18 months or 12,000 hours
- The pump must only be used in a dust free environment.
- For maximum diaphragm life, the pump must always be run with a back pressure load of approx 16 - 22kPa. This would give a noticeably sweeter sound to the pump hum. Do not use for long periods with unrestricted air flow. This will stretch the diaphragms to cause premature tearing or distortion. Back pressure is created by having the air diffusers or air stones deep in the water or if not possible, a flow control tap fitted into the air line.
See our full range of Air Pumps for Ponds and Septic Sewage Tanks
