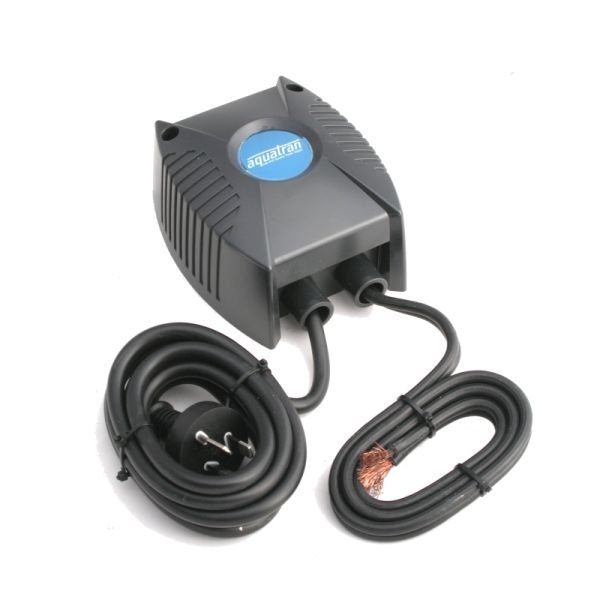

Aquatran Transformer 24V AC 50VA (50 Watt) IP67 Outdoor Toroidal - AQO24-050

Australia’s Leading Outdoor Power Supply. Recognised as the best performing, best priced and best looking outdoor low-voltage power unit available.
Click for our full range of Tinned LV Cable plus 12V & 24V AC transformers

SKU:
AQO24-050
$104.95

Rock Around The Block is Australia's most experienced & technical Aqualux/Aquatran dealer - Garden lighting since 1986

We hold large stocks for instant shipping

This high-performance toroid-based transformer is epoxy encapsulated for maximum protection outdoors from wind, rain and general ingress. Rated to IP67 by an independent laboratory, it is suited to powering a wide range of applications from outdoor garden and pond lighting, suitable low voltage pump applications and remote telemetry equipment. It may be buried in the garden to eliminate visual impact on the landscape & is protected against the effects of immersion in water.  It is the best outdoor power supply available. We have never had a warranty claim or requested replacement.

Features:

  • Rated IP67. Can be buried underground - flood-proof, hose-proof & weatherproof.
  • Rugged polycarbonate enclosure
  • Thermal and UV stable epoxy resin encapsulate
  • SELV (separated or safety extra low voltage) output
  • Designed and approved to NSW 22116 - AS/NZS/EN 61558.2.6
  • Dimmable with the latest technology universal dimmers or leading edge dimmers - check specifications in relation to wire wound iron core transformer capability.
  • For wall mounting or in-ground burial.
  • Primary 240V / 50Hz
  • Secondary Output (zero load): 24+VAC
  • Built in auto-resetting thermal protection.
  • Complete with 1.8m flex and plug & 800mm 8mm2 low voltage cable.
  • Comes with 20mm conduit adaptors for hard wiring to mains & low Voltage.
  • Must be installed in accordance with AS3000 wiring standards.
  • Weatherproof & virtually waterproof - can be used outdoors.
  • Dimensions: 110W 135H 65D mm
  • Weight: 2.0kg

Warranty: 5 year limited manufacturing fault warranty.
The Aquatran AQO range are designed and engineered in Australia and fabricated in China.

This transformer is a perfect weatherproof replacement for the transformer supplied with:
