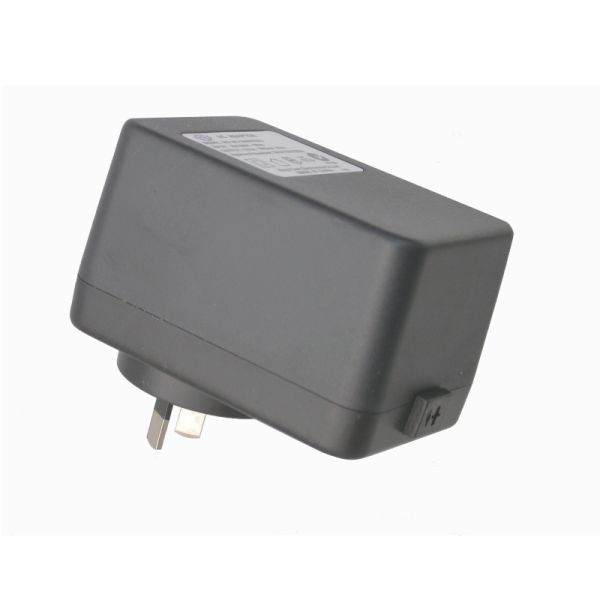

Transformer 12Vac 20VA for Resun King 1ALV/1AFLV/1LV/1FLV (Indoor) XY-12001670AS

Supplied for use with Resun King 1ALV & Resun King1FLV 12Vac Low Voltage model pond pumps.
Xing Yuan XY-12001670AS.

Will also suit Resun King 1LV & Resun King 1FLV 12V Low Voltage model pond pumps, which are supplied with a smaller 12Vac/10VA transformer , Model XY-12000830AS.

Plugpack style with Australian compliance C- tick.

Hint: You will obtain longer life from this transformer if it is runs 24/7. On/Off applications will reduce it's life from expansion & contraction deterioration of the windings

See our full range of 24V and 12V AC transformers plus LV cable

SKU:
XY-12001670AS
0 Review
$14.75

Standard equipment & supplied for use with Resun King 1ALV & Resun King 1AFLV 12V Low Voltage model pond pumps. Has a 2-pin socket to accept the Resun cable plug.

Will also suit Resun King 1LV & Resun King 1FLV 12V Low Voltage model pond pumps, which are supplied with a smaller 12Vac/10VA transformer , Model XY-12000830AS

Hint: You will obtain longer life from this transformer if it is runs 24/7. On/Off applications will reduce it's life from expansion & contraction deterioration of the windings.

Features:

  • Input: 230-240VAC 50Hz
  • Output: 12VAC 1.67A 20VA
  • Australian plugged 240V as plugpak style
  • Australian compliance with C- tick
  • Output socket: 12VAC (pin & spade 2.5mm apart)
  • Dimensions: 58mm deep x 56mm wide x 90mm long
  • Weight:  0.48kg
  • Indoor Rated Only

Manufacturer: Xing Yuan Electronics Co Ltd
