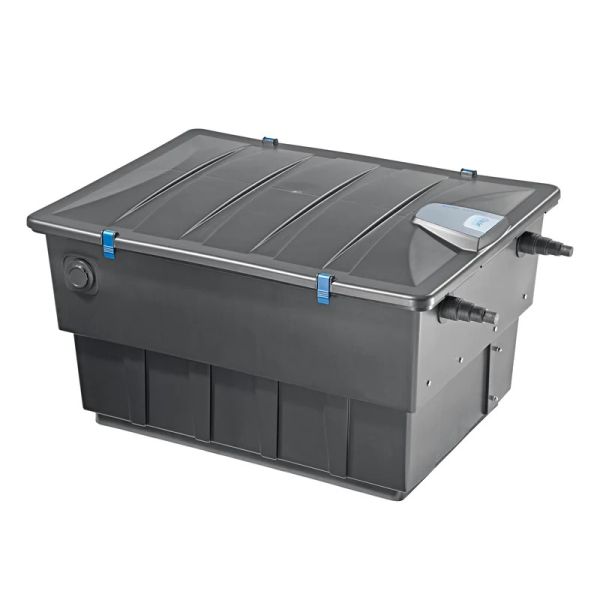

Key Features of OASE BioTec ScreenMatic 90000 Filter:
- Includes OASE Clear Water Guarantee
- Electrically driven ScreenMatic rotating screen for automatic removal of coarse debris
- Significantly less maintenance is required, thanks to coarse debris extraction
- Convenient cleaning of the foam filters directly inside the filter
- More convenience, thanks to automatically driven self-cleaning of the belt filter
- Adjustable cleaning Sensor controls the belt run, depending on the degree of pollution
- LED function check
- Sludge drains with slide valve for removing debris from the filter system
- Double-sealed motor for an extended service life
- Free brush for occasional cleaning of the belt filter
- Manual belt run possible via a simple press of a button
- Highly effective flow-through filter for ponds up to 90 cubic meters (90,000 litres).
OASE BioTEC ScreenMatic range of products are innovative high-performance flow through filters with intelligent function controls & adjustable automatic cleaning, and are suitable for medium to large water bodies and Koi ponds.
Flow through filters or Gravity filters stand above the water surface at the edge of the pond or above the watercourse. Such filters are fed by a pump in the pond and release clean water back into the pond via gravity. Special filter sponges or bio-media, that work both mechanically and biologically, help with removing excess nutrients and pollutants from the water. To ensure excellent cleaning results, OASE BioTEC ScreenMatic are partly equipped with innovative pre-separator system whereby the course debris is extracted prior to cleaning by filter sponges.
Features
- Includes OASE Clear Water Guarantee
- Electrically driven ScreenMatic rotating screen for automatic removal of coarse debris.
- Significantly less maintenance is required, thanks to coarse debris extraction
- More convenience, thanks to automatically driven self-cleaning of the belt filter
- Adjustable cleaning Sensor controls the belt run, depending on the level of pollutants
- Incl. LED function check
- Cleaning of filter sponges directly in the filter, without removal
- Sludge drains with slide valve for removing debris from the filter system
- Different filter media for optimal development of beneficial bacteria
- Use of the PhosLess filter media tubes as needed for string algae reduction (optional accessory)
- Can be optimally matched with OASE AquaMax Eco filter pumps
- Direct connection possibility for Bitron C and Eco UVC clarifiers
- Reinforced strap material for an extended service life
- Double-sealed motor for an extended service life
- Water distributor without danger of clogging, distributes water uniformly on the belt filter
- Sludge basket with greater volume and simplified handling
- Rubberised separating lip for outstanding separation result
- Free brush for occasional cleaning of the belt filter
- Manual belt run now possible via button
- Storm-safe fastening clips for lid for safety
- Highly effective flow-through filter for ponds up to 90 cubic meters (90,000 litres)
Specifications
- Rated voltage: 12V AC
- Power consumption: 5W
- Cable length: 12 V device 2.10m + Power cable 5m
- Dimensions (L x W x H): 79cm x 60cm x 45cm
- Net weight: 27 kg
- Total number of filter foams: 16 Units
- Number of blue filter foams: 4 Units
- Number of red filter foams: 6 Units
- Number of purple filter foams: 6 Units
- Special filter granulate: 5 kg
- Coarse dirt separation: 0.3mm (300 µm)
- Inlet connection: 25 / 32 / 38 / 50 mm
- Outlet connection: Diameter Nominal (DN) 110mm
- Sludge discharge connections: Diameter Nominal (DN) 50mm
- Min. flow rate: 8,000 L /hr
- Max. flow rate: 12,500 L/hr
- Max. pond volume with no fish: 90 m³ (90,000 litres)
- Max. pond volume with fish (non-Koi): 45 m³ (45,000 litres)
- Max. pond volume with Koi: 22.5 m³ (22,500 litres)
- Warranty (+ request warranty): 2 + 1 Years
