Absolute Ultra Clear Pond 11W UVC Clarifier - UCP11
Latest design technology in plastic UVC units. 11W Ultra Violet Clarifier for the pond or steriliser for the aquarium.
Superior design allows simple maintenance of the quartz glass, seals & lamp. An easy to service 11W Ultra Violet Clarifier for the outdoor pond or sterilizer for the aquarium. Suitable also for industrial applications.
- Turbulent vortex flow design for maximum UV-C light dwell time exposure
- Designed to maintain clear pond water if used within the pond stress variations of sunlight, pond volume & fish load
- In-built UVC cut-out microswitch for user safety to reduce the chance of UVC radiation injury if switched on whilst fitting new lamp.
- Uses easy-to-service engineering design technology - see More Views for detail
- Simple design allowing easy installation, disassembly, maintenance & cleaning
- Viewing glass for UVC lamp check. Lamp glow indicator viewing window is fitted to one of the outlets.
- Designed to be mounted or fastened horizontally
- Suggested maximum flow rate for our hot Australian conditions: 3000L/hr (fill 20L bucket in 24 secs)
- The total pond water should pass through the UVC every 1 1/2hrs to 2 1/2hrs (depending on the fish load). The shorter limit is optimum.
- Australian electrical equipment approval - Regulatory Compliance Mark (RCM safety tick of approval)
- Rated IP67 for waterproof outdoor use

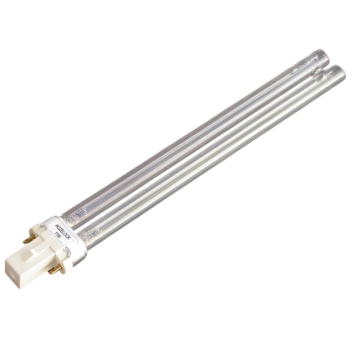

- 11W/240V - uses efficient PL-S11WTUV lamp.
- The serviceable UVC electrical head contains the ballast circuitry
- Quartz glass tube covering the UV lamp permits effective penetration of UV rays. Ordinary glass cuts this by 90%
- Body is sunlight UV resistant plastic
- Inlet/Outlet Size: 1 1/2" BSP male plumbing thread (48.7mm OD). Supplied with 25mm, 32mm, 40mm stepped-down barbed adaptors for soft flexible tubing.
- Maximum permissible pump head or lift: 7.0m (Otherwise the pressure could burst the seals)
- Cable Length: 5m.
- Dimensions: (L)360mm long x (W)146mm x (H)130mm
- Made in China
